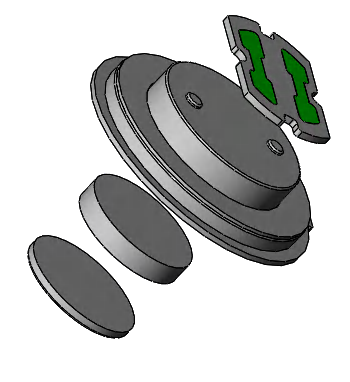

Four component magnetic circuit automation for a Φ 18mm speaker
Model: NS.CL20ZD.4NAB

Product Applications: Earphones below Φ 18, toys, TWS, OWS earbuds

Product Overview:
1. Implement Huasi, magnet, U-cup PUB、 The vibrating disc is fully automatic for feeding, and is assembled and bonded automatically through fixtures;
2. The whole machine is equipped with automatic dispensing, independent pressure holding, drying, and material receiving functions for individual products
Product Features:
The pressure holding module ensures that all products are individually pressurized with a pressure holding head, which is hot pressed to ensure that all products are evenly heated and the glue is evenly distributed;
The equipment comes with a shortage detection function, which detects whether the components are missing by detecting the height of the product components at the assembly station;
;

In high-end configuration, it can be equipped with adhesive and magnetic gap AOI detection functions (optional), and the spray valve non-contact dispensing (optional) can effectively improve the bonding yield of finished products

Product Capacity:
UPH: 5000~6000 PCS/H (depending on the customer's product process)
