Magnetization/flux detection table magnetic detection - online type
Product Introduction：

New energy motor magnetization/testing/meter magnetic detection solution

Used for full inspection of magnetic distribution of production line rotors, combined with fully automatic production lines, embedded into the production line for rapid detection of peak values of each magnetic pole Angle, area, width And half width. Automatically determine the number of poles of the magnetic ring and the polarity of the magnetic poles, and perform statistical analysis on the test results to calculate the maximum, minimum, and average values of each parameter The values and standard deviations can be plotted on an X-Y curve.
Product Features：
1. The measurement software can run on the Windows 7 operating system, comply with Windows software specifications, and operate intuitively and simply;
After inputting the sample parameters, the instrument automatically locks the measurement position and transfers the probe to the designated location without manual intervention;
3. The measurement software automatically determines the number and polarity of the magnetic ring, and the test results include the peak value, angle, area, width, and half width of each magnetic pole;
4. Multiple curves can be freely added for comparison, and the specified curve of the motor can be hidden on the interface. When measuring multiple sets of curves at once, several curves from this set can be selected Compare the curves;

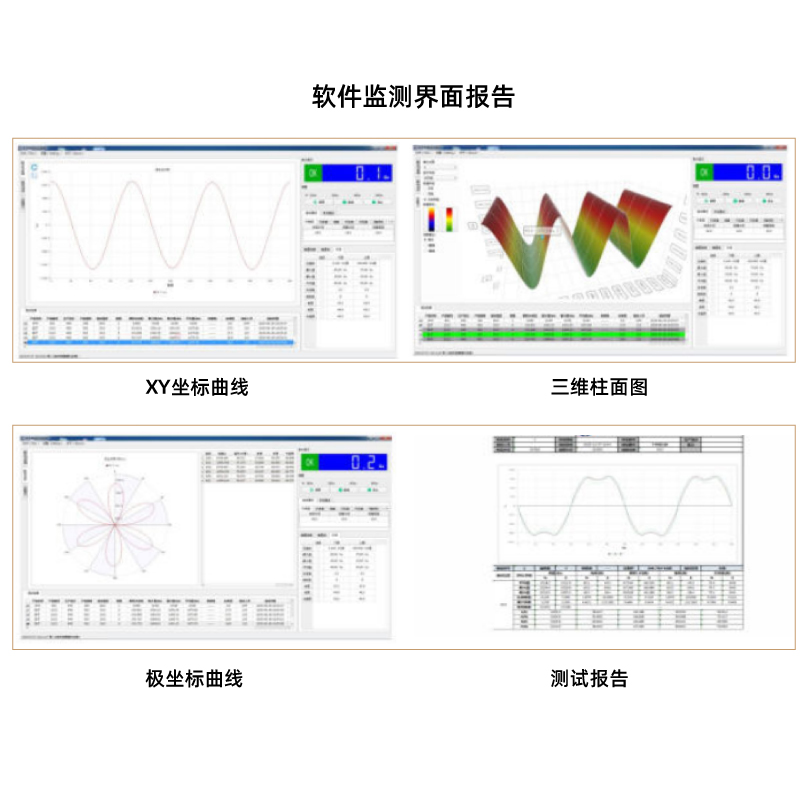

Software monitoring interface report:

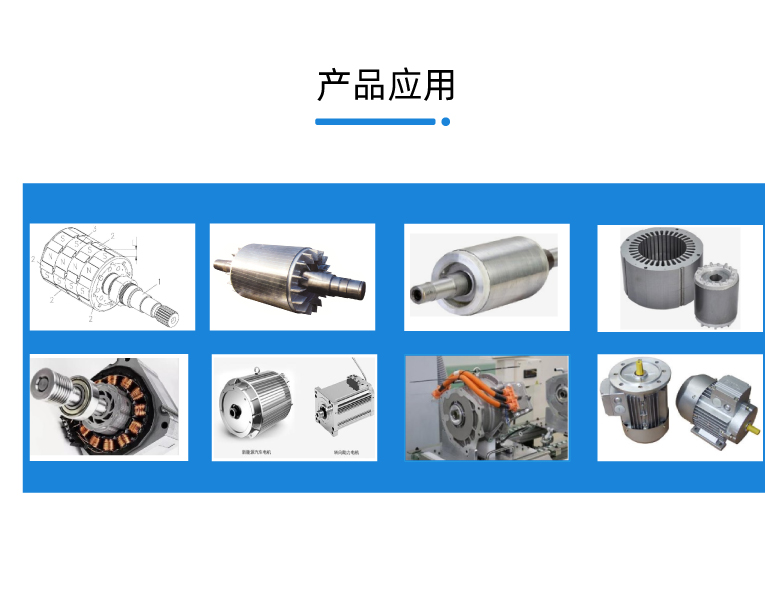

Product Application：
